Someplace on the web I
found
a very small black and white photocopy from the original sales material
mentioning this radio.
First a little history
about
the 1204 Zenith Chassis. From the Bryant and Cones books we see that
total
production of this
chassis was 35,960
units.
Serial Number sequences for these units were ...
R-232901 through R-251450
for 18,550 units
R-393401 through R-403800
for 10,400 units
R-519666 through R-526215
for 6,550 units
R-635141 through R-635370
for 230 units
Serial number of this chassis is R-635167
The chassis 1204 went
into
1938 Zenith models 12s206 a radio phonograph plus 12s232 Walton
Tombstone
plus 12s265 , 12s266,
12s267,
12s268 Consoles and the 12s245 Chairside.
So we ask ourselves why
would
Zenith produce a run of 230 chassis? Perhaps Zenith had a few of the
above cabinets leftover and
wanted a few chassis to put in them? Also after filling up these
last few chassis
perhaps they had a very few
chassis left. What to do with these? Well a little modification
to
a 1939
Zenith model 9s367 cabinet
and thats what a 12s374 is....
Modfications to the cabinet
are.... first the front panel was cut and a new top section was added
to match up to the teardrop
shaped fameous 1938 shutterdial Escutcheon... next for some reason
Zenith added a solid floor
to the cabinet.... it also has the same 12" Speaker with the Beehive
Accoustic
Adapter that is found in

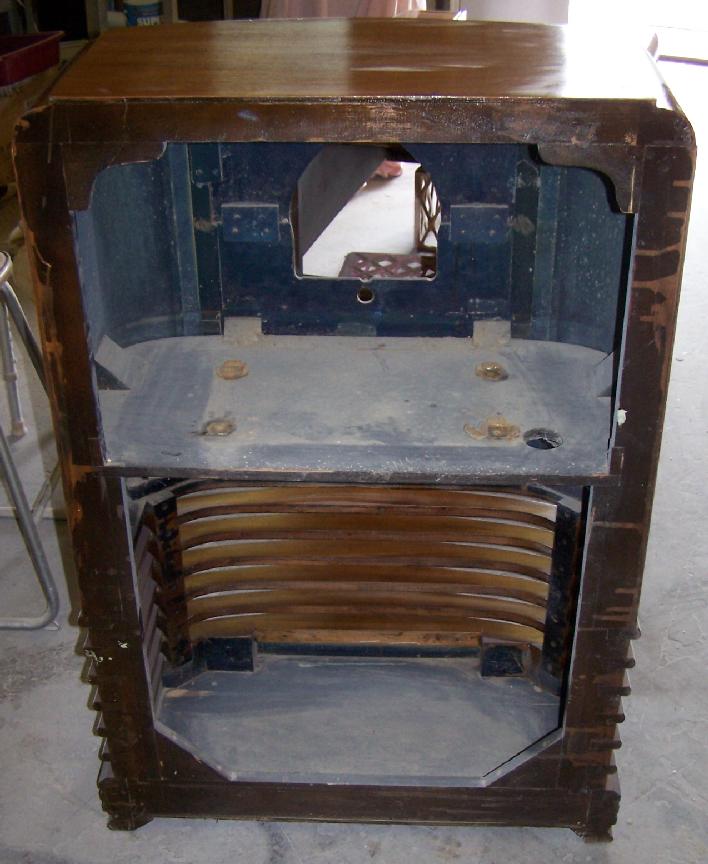

the 1938 models.... notice in the rear view the small wooden blocks
that are screwed fast to
hold the top section of the front panel to the lower section.... all
sprayed with the normal
Zenith
dark blue paint....
manuals and black and white
photocopies
about serial
numbers and codes
QR code decoder
information on quick
response
use of QR codes
Learning how to use codes
free QR codes
More comments after all the pictures...
Notice the Zenith paper label... its on the bottom of the chassis
shelf....
the label is for a
Zenith model 12s371 and the 371 part is crossed off and pencilled in
374...

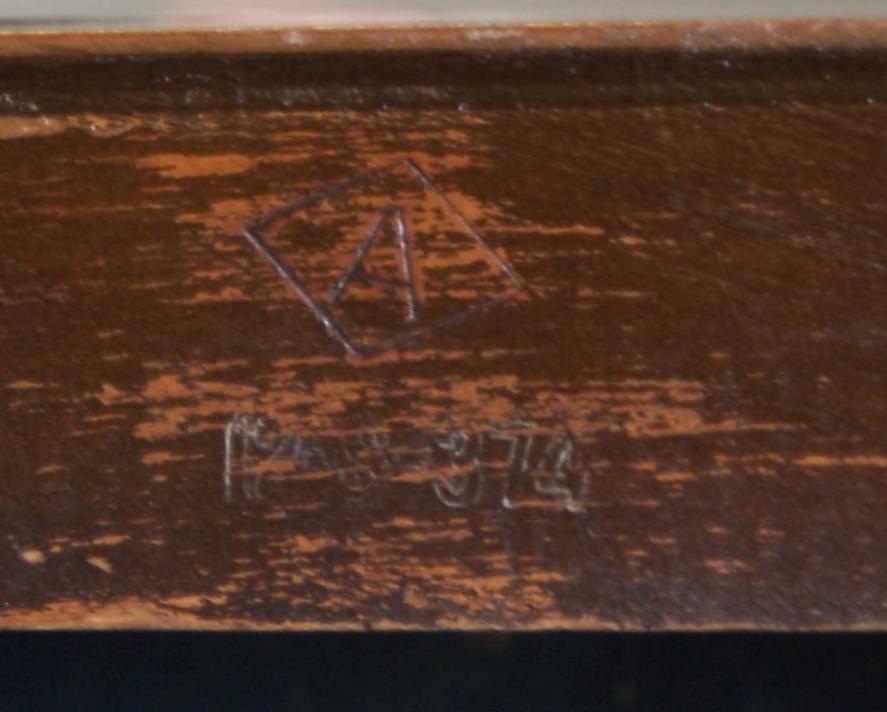

The rear edge of the top of cabinet has the Zenith model number stamped
in nicely
and it says 12-s-374 ....
I still wonder just how many of these radios Zenith produced? ....
This radio has never
been out of the original purchasers family... The original purchaser
lived east of St Louis, MO
in a town over into ILL a bit.... The radio came to Jean and I in July
of 2007 for restoration..
and was returned in November 2007 to the owners.... the radio now lives
in Lake Of The Ozarks, MO
with direct descendants of the original purchaser...
Jean and I were very happy to have been selected to restore this
rare....
very rare
Zenith console....
John & Jean
